Tunneling Rock Drilling 7020 T6 Aluminium Feed Beam

Name: Tunneling Rock Drilling 7020 T6 Aluminium Feed Beam
Brand: HUANYU
Price: 1 USD

Quality Tunneling Rock Drilling 7020 T6 Aluminium Feed Beam wholesale

Brand Name : HUANYU

Model Number : HYAFB6000

Place of Origin : People's Republic of China

MOQ : 5 Units

Payment Terms : T/T, T/T

Supply Ability : 28Units/Month

Delivery Time : 1 Week

Packaging Details : Plywood Case Length 678cm

Feed Beam Type : JUMBO BOOMER FEED BEAM

Length : 6,500MM

Matchining : Depends On Buyer's Demand

Material : 7000 Series Aluminum Alloy

Application : Tunneling Blasting Boreholing

Net Weight Per Meter : 35 Kilograms Per Meter

Surface Treatment : Mill Finish

Lead Time : Immediately

Contact Now

Rock Drilling Spare Parts Viga2000 Feed Beam Application On Tunneling Blasting Boreholing

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 488cm X24cm X 20 cm

Material Option	Aluminum Alloy 7020
Heat Treatment	T6 Temperature
Standards	GB/T6892-2006
Mechanic	σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface	Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option	Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation	1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Tunneling Rock Drilling 7020 T6 Aluminium Feed Beam

Product Tags:

7020 T6 Aluminium Feed Beam

Tunneling Blasting Aluminium Feed Beam

320MPa Aluminium Feed Beam

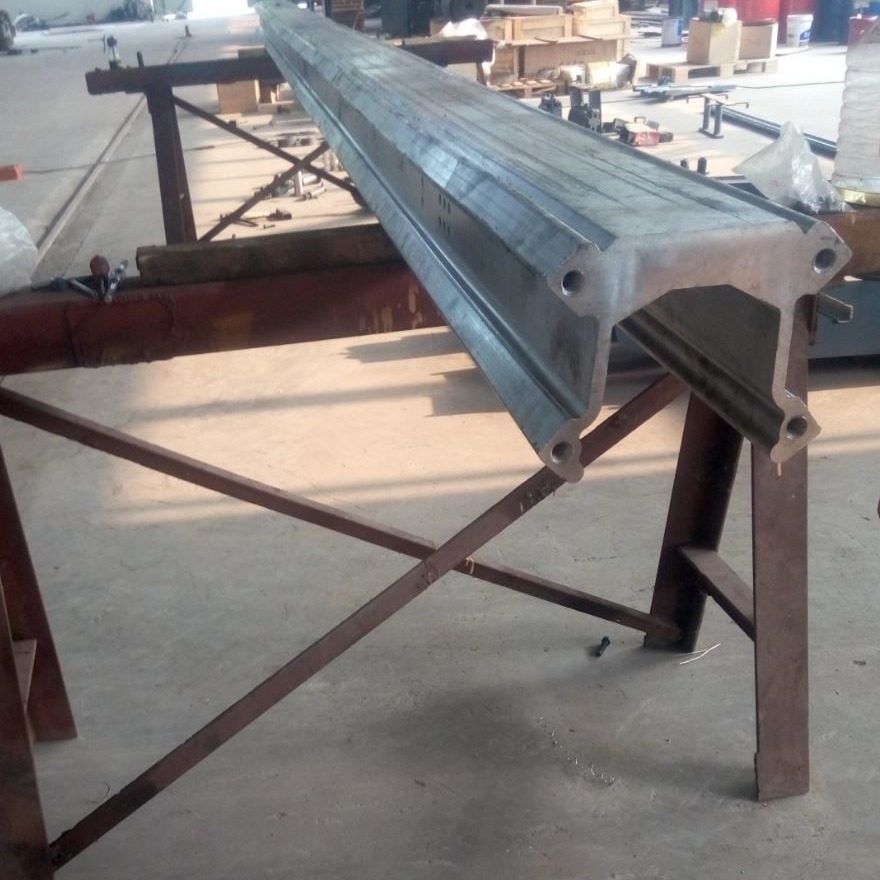

Tunneling Rock Drilling 7020 T6 Aluminium Feed Beam Images
